Blow moulding process:

Plastic molding is one of the most successful forms of manufacturing and a vital part of nearly every product that is on the market. The many varied ways that plastic molding is completed adds to the uniqueness of its products. The ability of plastic molding to create any type of shape, design, or configuration, regardless of its complexity, is the main reason for its success and growth.

Blow molding is widely used process that creates plastic bottles. Items produced by blow molding can be designed to hold several types of products such as make up, chemicals, and soft drinks. As the name implies, blow molding involves taking heated resin and forcing air into it until it takes the shape of the mold. The efficiency and speed of blow molding is one of the reasons that it has become such a popular form of plastic manufacturing.

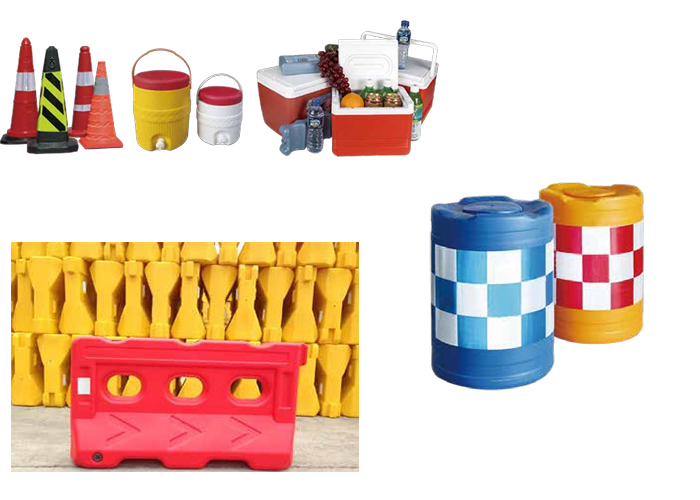

Blow Molding Machine Application:

• JWZ-BMJT30/50/100 Blow Molding Machine, Suitable for producing different kinds of road pyramid, logistic insulation barrels.

• JWZ-BMJT160/230 Blow Molding Machine, Suitable for producing different kinds of safety barrel,traffic divided blocks

• JWZ-BMJT500/1000 Blow Molding Machine,Suitable for producing different kinds of pallet.

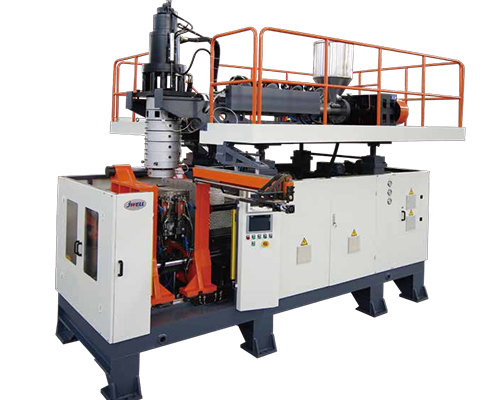

JWZ-BMH160/230 Blow Molding Machine

·Optional bottom sealing,product eject,core-pulling movement elements. ·Adopt high output extrusion system,accumulating die head.

·Optional Hydraulic Servo control system.

·Optional view strip line system.

·Optional hydraulic servo control system.


Blow Moulding process Diagram:
