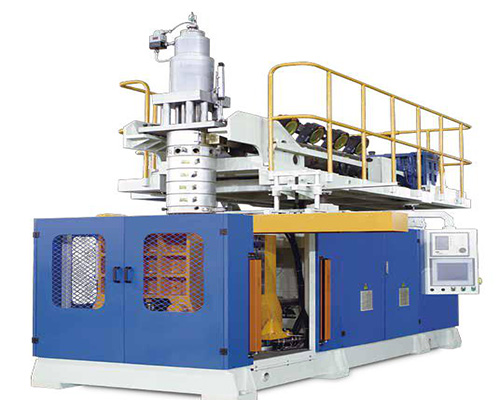

JWZ-BM3050100 Blow Molding Machine

Certification: CE,ISO,UL,QS
Certification: CE,ISO,UL,QS
Brand: JWELL
Description: The product coverage various blow molding products such as 30~100L plastic bottles, pots, tank, drum, tool bags, seats, table tops, blow-molded pallets and automotive plastic parts.
INQUIRY EMAIL

JWZ-BM30 50 100 Blow Molding Machine Technical parameters
	Model	Unit	BM30	BM50	BM100
	Max product volume	L	30	50	100
	Dry cycle	Pc/h	600	450	360
	Die head structure		Accumulating type
	Main screw diameter	mm	80	90	100
	Max plasticizing capacity (PE)	kg/h	120	180	190
	Driving motor	Kw	37	45	55
	Accumulating volume	L	5.2	6.2	12.8
	Oil pump motor power	Kw	15	18.5	22
	Clamping force	KN	280	400	600
	Space between platen	mm	400-900	450-1200	500-1300
	Platen size W*H	mm	740*740	880*880	1020*1000
	Max.mould size	mm	550*650	700*850	800*1200
	Heating power of die head	Kw	20	28	30
	Machine dimension LWH	m	4.32.23.5	5.62.43.8	5.52.54.0
	Machine weight	T	12	13.5	16
	Total power	Kw	95	110	135
JWZ-BM30 50 100 Blow Molding Machine Performance and advantages ·Suitable for producing different size of children safety chair, desk board, playground facilities. ·Adopt high output extrusion system, accumulating die head. ·According to the different material, optional JW-DB single station hydraulic screen-exchanger system. ·According to the different product size, customized the platen type and size. ·Optional hydraulic servo control
