Blow moulding process:

Blow molding is the forming of a hollow object by inflating or blowing a thermoplastic molten tube (parison) in the shape of a mold cavity.

3 Types of blow molding process:
• Injection Blow Molding. In injection blow molding, a blow or core rod is used throughout the process.
• Extrusion Blow Molding. Extrusion blow molding can be continuous or intermittent.
• Injection Stretch Blow Molding.

Perhaps the most common type of blow molding process is extrusion. With extrusion blow molding, plastic is heated until it turns from a solid state to a liquid state. The liquefied plastic is then forced into an Extrusion Machine.

Blow Molding Machine Application:

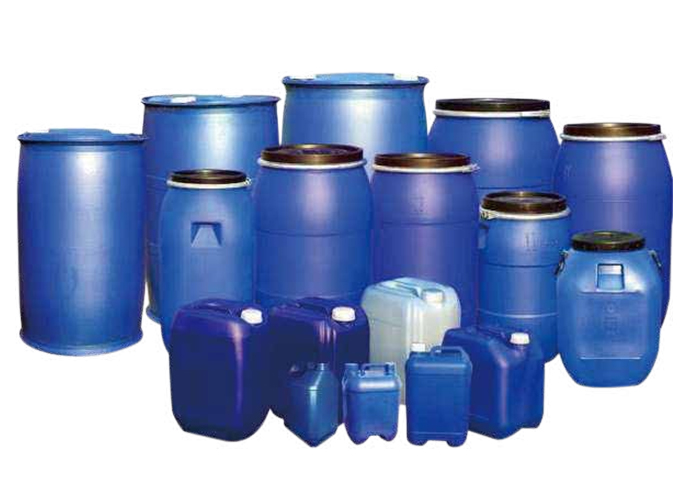

•  Suitable for producing 15-30L different size Chemical packaing jerrycan.

• Suitable for producing 15-100L different size jerrycan,open-top barrels and others chemical packaging products.

• Suitable for producing 15-100L different size of jerrycan, open-top drums chemical packaging products.

• Suitable for producing 100-220L open-top drums, dou ble"L"ring drums.

• Suitable for producing 20-200L double layer open-top drums, double "L"ring drums

• Suitable for producing 500-1000L big size Chemical revolving barrel

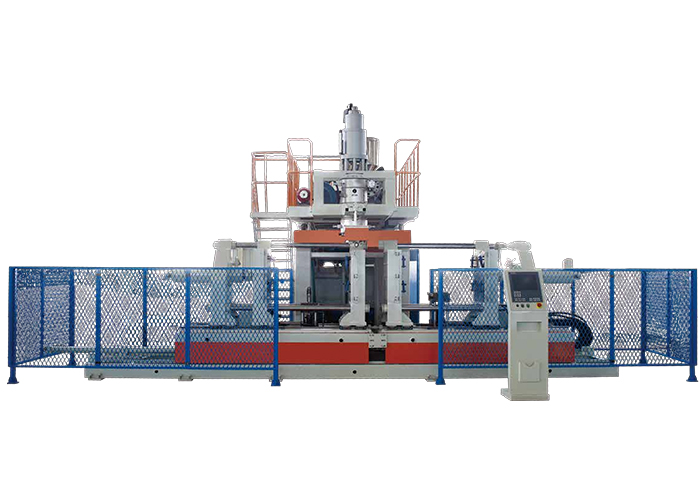

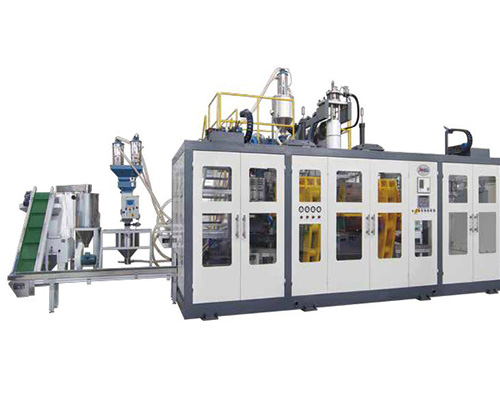

JWZ-BMH30/50/100 Blow Molding Machine

·Adopt continuous type die head, up-blowing structure, convenient for product auto-deflashing on-line, scrap conveying on line, finished product leak testing on line, conveying,packing, etc.,reducing the working cost and increasing the production ratio.

·Adopt toggle type platen structure, have the advatages of uniform-clamping, big clamp force, assembling large mould, easier dismounting& assembling the mould. ·Optional double layer co-extrusion system.

·Optional view strip line system.

·Optional hydraulic servo control system.

Blow Moulding process Diagram:
