JWELL IXPE XPE Foam Sheet Roll Extruder Production making machine extrusion Line for sports|toys and leisure production|XPE foam 3D wall sticker
The structure of XPE foam material is independent hole enclosure structure, it has the function of heat preservation and heat insulation. Meanwhile it features with noise reducing ,water proof. And it has the properties of heat resistance, anti aging and environmental protection and its coil shape and lamination features, so this product can be widely used in central air conditioning project, pipe project, large container, advanced composite layer; bag lining, packaging of integrated circuit board, sole of advanced sports shoes, cushion and heat insulation for car, decoration material, floating material and single or double coat adhesive tape and so on. The surface of IXPE is smooth, close and vesicle is tiny and even. This product is widely used in building, chemical pipe, thermal projects,car and boat manufacture, package, agriculture, fishery, gym and musement fields

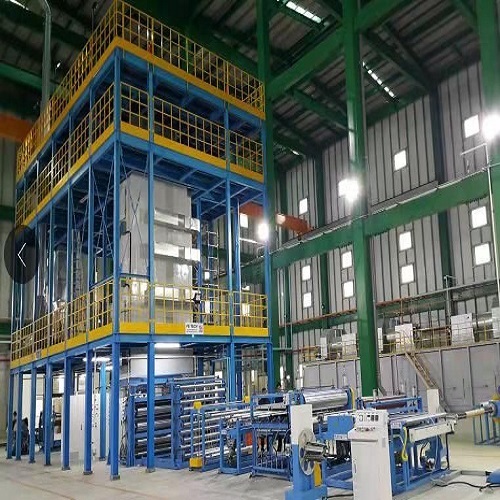

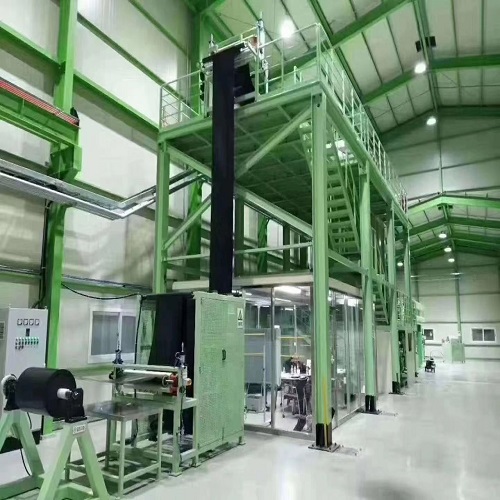

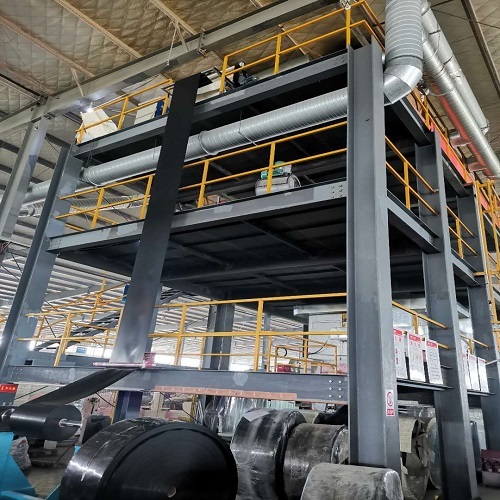

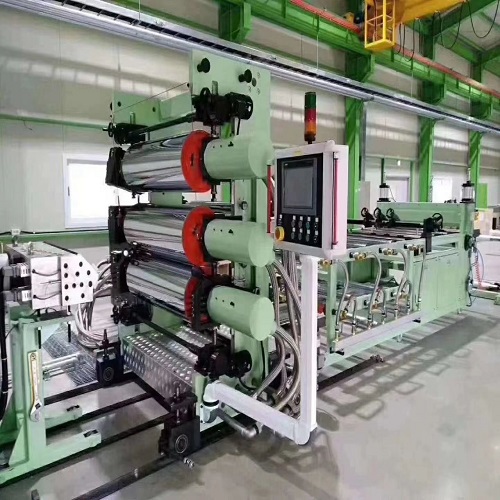

JWELL IXPE XPE Foam Sheet Extrusion Line:
Production process: Mixer granulation all-in-one (LDPE+AC,LDPE+DCP) → Extruder sheet → The foaming furnace is foaming → After the equipment→ All kinds of products.
1.JWELL-150 Mixer single screw pelletizing line specification
Suitable material and output: XPE foam pellet, output 300-400kg/h
Pelletizing process: 75L mixer→automatic lift machine→double feeder→∮150 single screw extruder→plate type hydraulic mesh changer→air cooled type Eccentric hot cutting mould→Eccentric hot cutting cover→ The two stage cyclone separator--vibration sieve →air blow material collection silo.
Characteristics of XPE chemical foam:
1. Cushioning -- a semi-rigid foam body, which does not lose its original performance after being hit hard.
2. Forming property -- high heat resistance, good ductility and even density
3. Sound absorption -- it has the function of sound absorption and noise reduction, and is suitable for aircraft, automobile and other strong noise equipment as well as sound absorption and sound insulation materials in the environment.
4. Adiabatic property -- its tiny independent bubble structure can effectively reduce energy exchange caused by air convection.
XPE is also non-toxic, odorless, drug resistant, oil resistant, acid resistant, halogen resistant and other chemical properties.
Due to the above characteristics of XPE, XPE has been widely applied and required in different industries. In the early stage, it was mainly applied in household appliances and automobile industry.Later, it was gradually extended to the construction, sporting goods, medical industry and packaging industry with high standards.

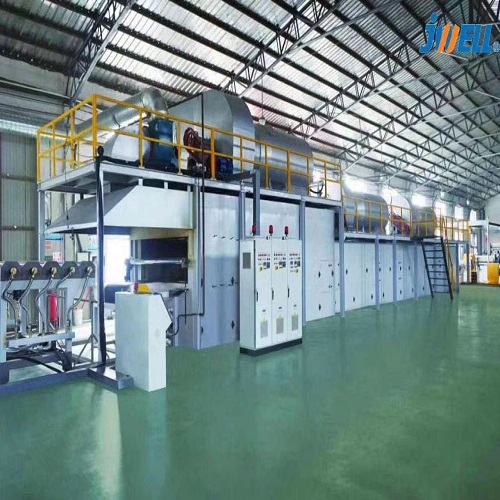

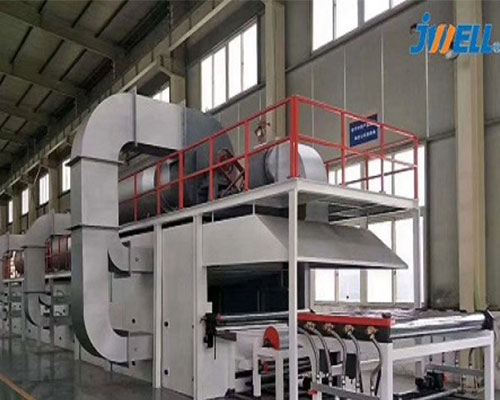

Performance advantages of XPE foaming furnace:
1) the preheating and cross-linking sections are greatly changed, and the heat capacity space is reduced when the process requirements are met.It also saves energy.
2) large output.Among the foaming furnaces produced in China at present, our three-stage furnaces produce the maximum output (maximum 200kg/h or more).And XPE bubble hole than two - stage furnace is closer.The gas consumption is equal to that of the two furnaces.
3) observation holes are set on the wall board of the foaming section.At the same time, a baffle structure is set up at the outlet of the foaming furnace to adjust the size of the hearth according to the production of products, so as to achieve the effect of energy saving.
4) the foaming rate can be as high as 35-40 times.
Main application areas of XPE products:
a. Car MATS And thermal insulation materials
A few points to note when choosing car MATS:
1. Safety first, it is better to use a special car, which will not slide so as not to affect the driving operation!According to the size of the car space with the mold custom-made.
2. It depends on the smell. If the smell is bad, it will not only affect the driving mood, but also harm the health after a long time.
3. Color should be matched with the interior of the car. The interior of collocation car is mostly beige, while the interior of imported car is mostly black.
4. Easy cleaning, so easy to do.
5. Do not be completely surrounded by deformation.
Early in the product material is franklin blanket + EVA, now widely for leather + XPE + sewing embroidering, XPE is polyethylene foamed material, soft wear-resisting material, itself is of environmental protection, with leather combined with hot forming, deserve to go up sewing embroidering machine, can produce all kinds of the surrounding floor MATS, so process does not need to glue all the way, safe environmental protection, the market vigorously promoted.

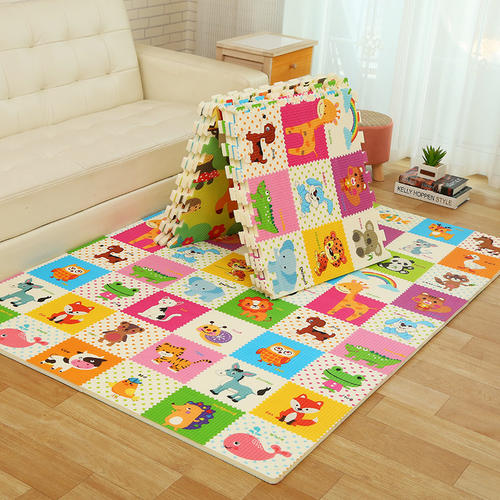

b.Climb a mat
Baby crawl originated in Japan and South Korea, and the market in Japan and South Korea tend to mature, the awareness of the Chinese market is also gradually formed.Baby crawl pads there are a lot of other names these days, baby crawl pads, baby play pads, baby activity pads, actually baby crawl pads.
Nowadays, when choosing a crawling mat, some people think that it is not just a mat but soft and convenient. However, a treasure mother who has paid attention to the crawling mat will know that the material quality of the crawling mat directly affects the health of the baby.
The traditional crawl supplies are generally blankets, bedding, but these supplies have many problems: they are heavy and not easy to carry;Easy to dirty, time-consuming and laborious cleaning;Moisture absorption, easy to come back.With the progress of time and technology, the new material crawling pad is gradually moving towards our life.
At present, in the domestic and foreign markets, the common materials of the crawl pad are mainly divided into four types: EVA, EPE, PVC and XPE.
But did you build it?China CCTV reported that over 90% of EVA materials' crawling pads on the market were found to be over the standard.Formamide, also known as amino formaldehyde, is a kind of reproductive toxicity, can stimulate the eyes, skin, damage the respiratory tract and reproductive system of the baby!Most of the common color patch pads on the market are made of EVA material.
So, we know about EVA crawlers, what about the rest?Let's do a little bit of a comparison, just to make it a little bit more intuitive.
Mainly used for children's room, nursing home decoration decoration, play to reduce the risk of falls.At the same time, due to its three-dimensional effect,
Decorate a respect to also be accepted for people gradually in the home and office, the application of setting wall is relatively more extensive.
Three - dimensional wall paste mainly has the following characteristics
1. The texture is soft and elastic, which can better prevent collision of children.3D brick pattern, excellent material and elegant contour create simple and pure style.Add thick brick grain, have better sound insulation effect.
2 decoration is convenient and easy to clean, easy to paste, back with gum, just tear off the bottom paper, and then paste on the smooth surface of the surface is waterproof anti-pollution materials, can be directly scrubbed with wet cloth, convenient and quick.Even if want to decorate afresh later, need to tear original product to be able to begin afresh afresh wet cloth is cleaned directly, convenient and quick.
3. Long shelf life, as long as there is no strong impact damage to the surface, the material itself will not deteriorate.
Application:
Jwell- XPE Plastic Foaming Sheet Making Extruder Machine for sports|toys and leisure production
XPE foam 3D 3D wall sticker
