This project takes PP as raw material and produces PP filament yarn with extruder, spinning, cross-quenching, drafting and winder.
Output, configuration can be designed according to user requirements.
The total investment is small, the investment period is short, the spinning operation is convenient.
The production can be designed and produced according to customers requirements, Can design and produce with normal、middle and high tenacity yarn.
Special spinning building or whole steel structure can be designed according to user's demand.
High precision steam heating method is adopted to ensure the surface temperature control accuracy with ±1.5°.

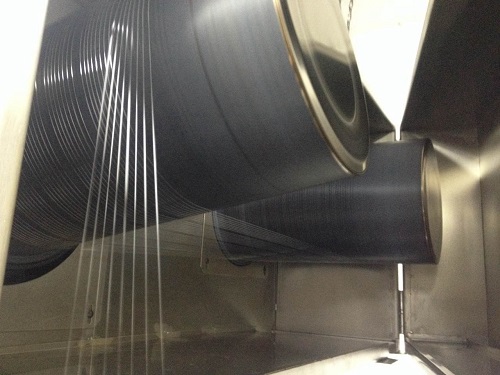

Adopt special hot goldet arrangement to ensure the strength and tension of PP yarn.
A specially designed Cross-Quenching device is adopted to ensure the uniformity of the silk.
Electrical control adopts imported interver, temperature control instrument and imported rotary transmitter, the control is accurate and reliable.

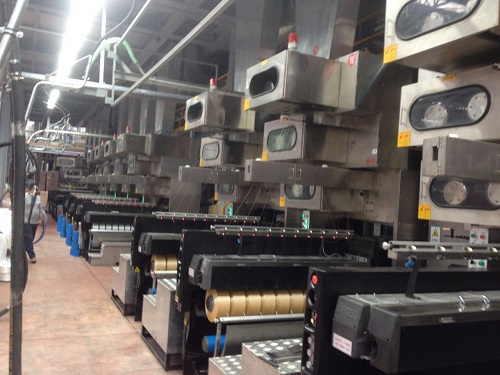

With automatic winder system, the yarn tension is constant, ,with good transfer,yarn shape is excellent.

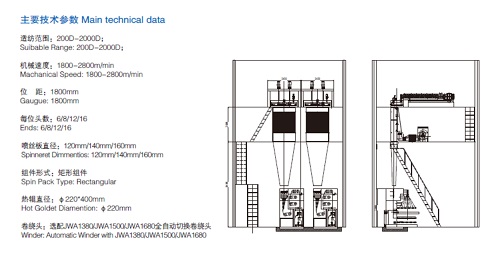

Main technical parameters:
Textile Coverage: 200D-2000d;
Mechanical Speed: 1800-2800m/min
Distance: 1800 mm
Head Count: 6/ 8/ 12 /16
Spinneret diameter: 120mm 140mm 160mm
Component form: rectangular component
Diameter of Hot Roller: medium 220 * 400 mm
Winding Head: Matching JWA1380/JWA1500/JWA1680 automatic switching winding head
New Products Introduction:
T400 New process technology
Fully automatic high-speed precision control Winder

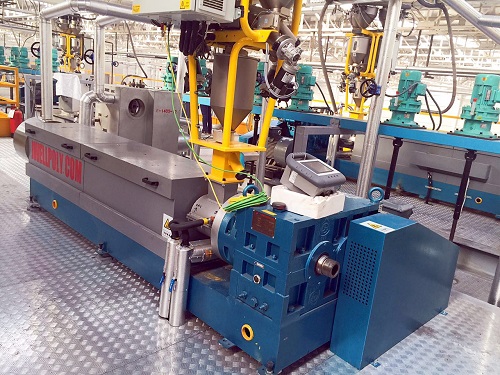

Special Extruder for modified chips
Interconnected control system
Hot Roller System for differential spinning
Yarn Spinning Machine Product Overview:
Direct Spinning
PET (polyester)- POY/FDY
PA6(nylon)- POY/FDY
PET Recycling-POY Bottle flakes
PP (polypropylene) FDY/BCF
Spandex yarn
Industry Yarn
T400/T8/ITY/SPH Bi-component
PET/PA6 Multi-composite spinning
Microdenier POY
BCF line
Old Spinning project Modification
PP FDY Yarn Spinning Machine Product Description：
| Material | PET/ PA6 / PA66 / spandex / PP chips, PET flakes |
| Denier(D) Range | 50D-500D (customized) |
| NO. OF Holes (filament) | 24F 36F 48F 72F 96F 144F 228F 288F(customized) |
| Production | POY/ FDY/BCF/Industry Yarn/ Micro denier (customized) |
| Process speed | PET POY:2800-3500m/min PET FDY:2600-4500m/min |
| NO. of Positions | 6 / 8 /10 / 12 positions(customized) |
| NO. of ENDS | 8 /10 / 12 ends(customized) |
| Winders | Automatic |
| Grade class rate | up to grade class rate ≥98%,first class rate ≥95%,full package rate≥90% |
