JWELL Polyester(PET) Industry Yarn Spinning Line

PET Industry Yarn Spinning Machine Application：

Suitable for Chips Spinning of PET,PA high tenacity, Low Shrinkage Industrial yarn Production.

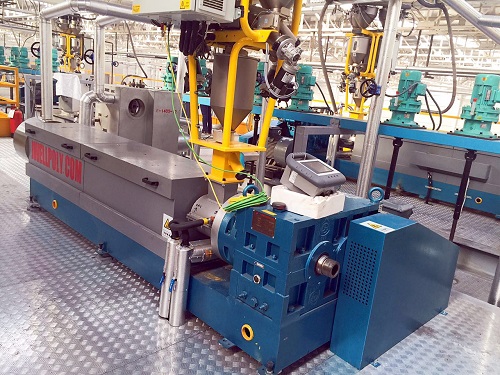

● Specially designed extruders improves melt properties and reduces melt viscosity degradation.

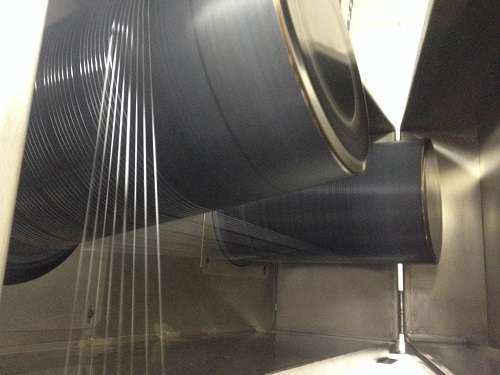

● The hot godet is induction heated and it’s surface temperature is reliably evened with thermal tubes or individually controlled in each heating section.

● This spinning machine can be matched with JW Series automatic winder featuring lower ADF, lower waste rate and good package formation.

Main technical parameters:

Textile Coverage: 200D-2000d;

Mechanical Speed: 1800-2800m/min

Distance: 1800 mm

Head Count: 6/ 8/ 12 /16

Spinneret diameter: 120mm 140mm 160mm

Component form: rectangular component

Diameter of Hot Roller: medium 220 * 400 mm

Winding Head: Matching JWA1380/JWA1500/JWA1680 automatic switching winding head

New Products Introduction:

T400 New process technology

Fully automatic high-speed precision control Winder

Special Extruder for modified chips

Interconnected control system

Hot Roller System for differential spinning

Yarn Spinning Machine Product Overview:

Direct Spinning

PET (polyester)- POY/FDY

PA6(nylon)- POY/FDY

PET Recycling-POY Bottle flakes

PP (polypropylene) FDY/BCF

Spandex yarn

Industry Yarn

T400/T8/ITY/SPH Bi-component

PET/PA6 Multi-composite spinning

Microdenier POY

BCF line

Old Spinning project Modification

PET Industry Yarn Spinning Machine Product Description：
