Suitable for Chips Spinning of PET,PA high tenacity, Low Shrinkage Industrial yarn Production.

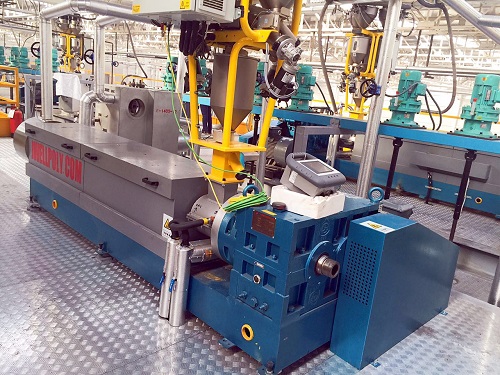

● Specially designed extruders improves melt properties and reduces melt viscosity degradation.

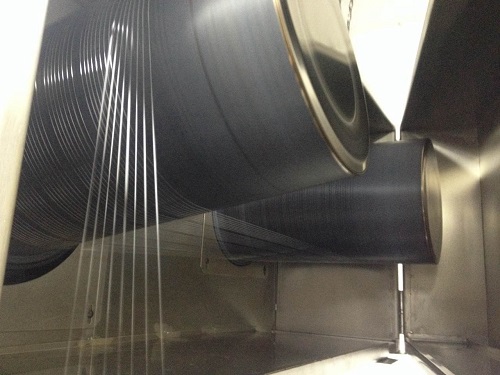

● The hot godet is induction heated and it’s surface temperature is reliably evened with thermal tubes or individually controlled in each heating section.

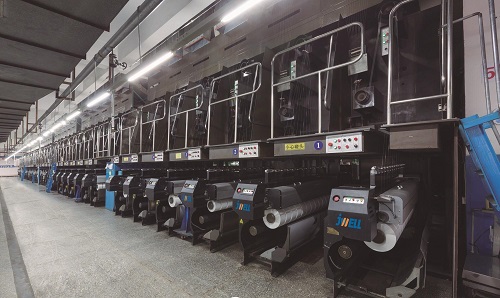

● This spinning machine can be matched with JW Series automatic winder featuring lower ADF, lower waste rate and good package formation.
PA Industry Yarn Spinning Machine Main technical parameters:
Textile Coverage: 200D-2000d;
Mechanical Speed: 1800-2800m/min
Distance: 1800 mm
Head Count: 6/ 8/ 12 /16
Spinneret diameter: 120mm 140mm 160mm
Component form: rectangular component
Diameter of Hot Roller: medium 220 * 400 mm
Winding Head: Matching JWA1380/JWA1500/JWA1680 automatic switching winding head
New Products Introduction:
T400 New process technology
Fully automatic high-speed precision control Winder
Special Extruder for modified chips
Interconnected control system
Hot Roller System for differential spinning
Yarn Spinning MachineProduct Overview:
Direct Spinning
PET (polyester)- POY/FDY
PA6(nylon)- POY/FDY
PET Recycling-POY Bottle flakes
PP (polypropylene) FDY/BCF
Spandex yarn
Industry Yarn
T400/T8/ITY/SPH Bi-component
PET/PA6 Multi-composite spinning
Microdenier POY
BCF line
Old Spinning project Modification
PA Industry Yarn Spinning Machine Product Description：
| Material | PET/ PA6 / PA66 / spandex / PP chips, PET flakes |
| Denier(D) Range | 50D-500D (customized) |
| NO. OF Holes (filament) | 24F 36F 48F 72F 96F 144F 228F 288F(customized) |
| Production | POY/ FDY/BCF/Industry Yarn/ Micro denier (customized) |
| Process speed | PET POY:2800-3500m/min PET FDY:2600-4500m/min |
| NO. of Positions | 6 / 8 /10 / 12 positions(customized) |
| NO. of ENDS | 8 /10 / 12 ends(customized) |
| Winders | Automatic |
| Grade class rate | up to grade class rate ≥98%,first class rate ≥95%,full package rate≥90% |
