Bicomponent yarn definition as per it’s section :
SEA-ISLAND type,Split spinning, Sheath-Core type, Side by side
Bicomponent Yarn Spinning Machine Technical Feature:
● Two groups of melt distribution pipelines with static mixer can be connected with continuous CPF.
● Separately temperature controlled spin beam of two cases with freezing valves, two groups of metering pump driving system and precise planetary pumps.
● Top-mounted or bottom-mounted composite spin packs and various composite spinneret.
● Uniform and stable quenching chamber system.
● Oil finish spray and driving system.
● Two groups of uniform and reliable dowtherm heating system.
● Imported high precision inverter and imported high precision temperature controlling meters with setting, temperature controlling, monitoring and recording functions
● Imported high precision inverter and imported high precision temperature controlling meters with setting, temperature controlling, monitoring and recording functions
New Products Introduction:
T400 New process technology
Fully automatic high-speed precision control Winder

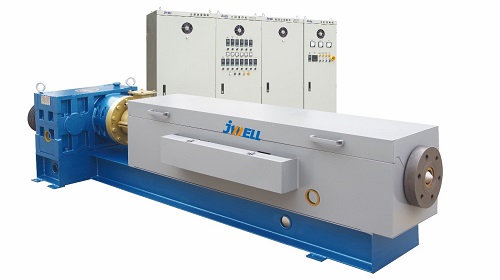

Special Extruder for modified chips
Interconnected control system
Hot Roller System for differential spinning
Product Overview:
Direct Spinning
PET (polyester)- POY/FDY
PA6(nylon)- POY/FDY
PET Recycling-POY Bottle flakes
PP (polypropylene) FDY/BCF
Spandex yarn
Industry Yarn
T400/T8/ITY/SPH Bi-component
PET/PA6 Multi-composite spinning
Microdenier POY
BCF line
Old Spinning project Modification
Product Description：
| Material | PET/ PA6 / PA66 / spandex / PP chips, PET flakes |
| Denier(D) Range | 50D-500D (customized) |
| NO. OF Holes (filament) | 24F 36F 48F 72F 96F 144F 228F 288F(customized) |
| Production | POY/ FDY/BCF/Industry Yarn/ Micro denier (customized) |
| Process speed | PET POY:2800-3500m/min PET FDY:2600-4500m/min |
| NO. of Positions | 6 / 8 /10 / 12 positions(customized) |
| NO. of ENDS | 8 /10 / 12 ends(customized) |
| Winders | Automatic |
| Grade class rate | up to grade class rate ≥98%,first class rate ≥95%,full package rate≥90% |
