T-die Mould

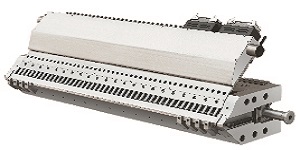

JW-P-K

Fast opening die series, the upper die lip with fine- tuning push-pull type, the flexible lower die lip can adjusting product thickness on-line without stop, the Max adjusting range up to 5 mm, Equip with 45 ° blocking bar, it is suitable for produce PC, PS,PP,PE, PLA, single-layer or multi-layer plate.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

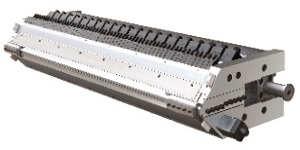

JW-P-A1

With coat-hanger channel, micro-ad- justable upper die lip, the die is perfect for single-layer or multi-layer PET (APET, PET) PC, PS, PP, PLA plate with the width s2100mm, and the thickness between 0.1 4- 2mm.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

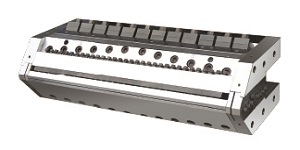

JW-P-AT1

Auto-adjusting die,the upper die lip is adjusted by theauto-control system which divided into manual-control unit andauto control unit; the first can control the accuracy in 1mm andthe latter 300um. Fits for PC, PS, PP, PE, PLA single-layer or multi-layer sheet or film with different width.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

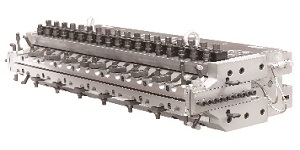

JW-P-D1

With multi-manifold design, the die can combine the materials inside to ensure the accuracy of the film. The die adopts micro-adjustable upper die lip, fixed lower lip and45° blocking bar, which is fit for PC, PS, PP, PE, PLA multi-layer co-extrusion sheet.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

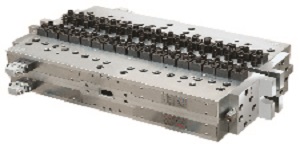

JW-B-A1

With special coat-hanger channel design, the die minimizes ablation of heat sensitive material. With the adjust- able upper dielip, changeable lower die lip and perpendicular blocking bar, the die meets the thickness requirements of various products. The dies fit for PVC foaming board with the thickness between 2- 20mm.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

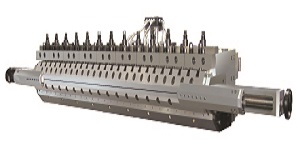

JW-B-CF

Double flow channels design, the upper and lower die lips are adjustable with the oil temp control, the skinning effection of the products surface is better and have less inner stress, truly realizing surface skinning and foaming. Thickness of products:5- 30mm.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

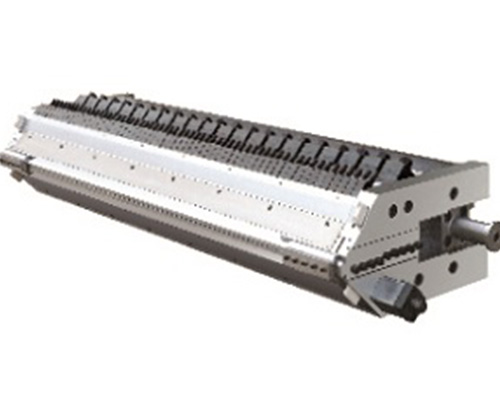

JW-B-B1

The die adopts a typical coat-hanger channel, and adjustable upper die lip, changeable lower lip and perpendicular blocking bar. With ST-model with control system, the width of products can be changed without interrupting. The die is designed for ABS, PS, PP single-layer or multi-layer plate with the thickness between 0.8-8mm.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

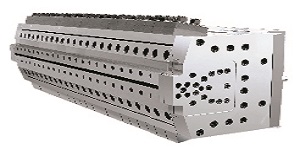

JW-F-A1

PVC coating die adopts special channel of coat-hanger structure, adjustable upper die lip, perpendicular blocking bar, the thickness of production can be adjusted.  In pairs, special-purpose conveyer belt with different thickness  and size can be produced. This kind of products are widely used in mining, storage, transportation and so on; Specification (mm):650, 800, 1000, 1200, 1400, 1600, 1800, 2000.
