Roller series

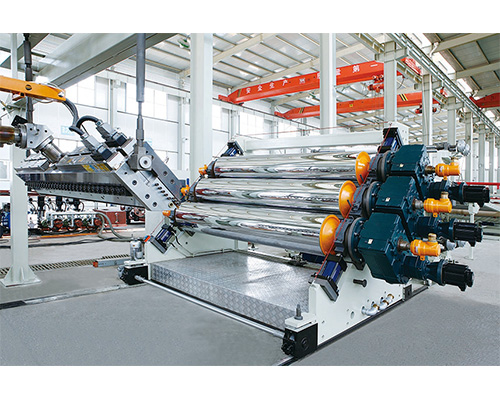

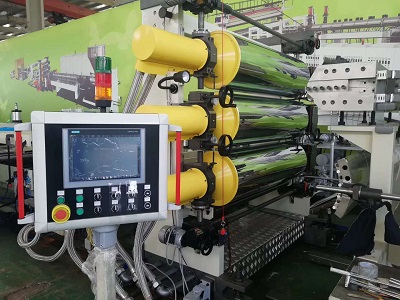

Mirror roller

●The surface roughness level of the roller can be reached Ra0.005-0.01μm;
●He (the)cylindricity and concentricity of the roller can be reached s0.005mm;
●Enhanced roller rigidity and minimized roller surface temperature deviation through special roller structure design.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

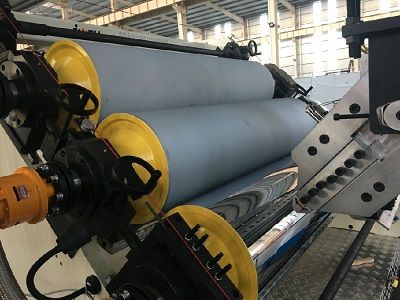

Embossing roller

● Roller surface material includes 45 # steel,38GrMoAl,42GrMo,60GrMoV
● Both the diversified internal runner design, and the roll surface temperature uniformity technology, ensure the uniformed pattern on the product surface
● Surface plating hardness can be reached HRC60-62

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

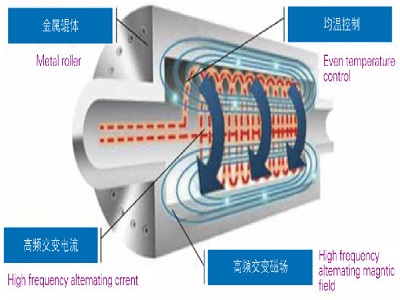

Electromagnetic Heating Roller

● energy saving - 60% energy saving comparing with the heat conduction oil roller  or steam roller;
● high precision temperature control, temperature precision reaches ±0.5°C;
● faster heating up- takes only 25 min from room temperature to 200 °C;
● high working temperature, roller surface temperature can reach above 400 °C for operation , satisfies the requirement of high temperature production;
● environmental protection - all electric control, no oil pollution, clean production environment.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

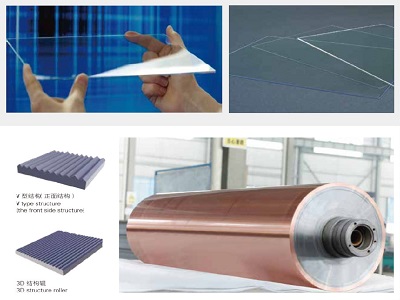

Micro-Structure roller

Microstructure roller make the micro structure treat for the roller surface after the copperize, nickelage, to be the height class  optics sheet or film which will be the key module parts of the LCD panel. The final product used in the LCD/LED display, mobile phone, 3D raster, prismatic lens and micro lens.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

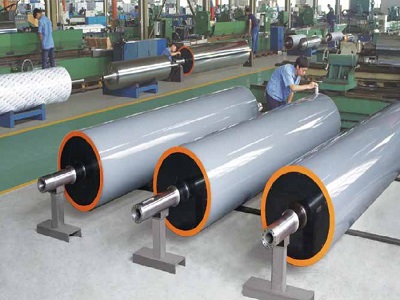

Casting film roller

● Roller diameter: max. 1600 mm
● Roller cylindricity, concentricity both ≤0.005mm;
● Roller surface hard chromium plated, coating thickness is 50 ~ 80 um
● Roller surface temperature deviation ±0.5~1°C;
● roller surface treatment: mirror polished, super finishing mirror, matt, mist and anti adhesive surface;
● Speed: max. 800 m/min;
● Overall deformation: < 0.05 mm at full load
● Best dynamic balance: Q = 3.2
